2023 Arcfox Kaola Electric MPV

Basic Information

• Model: Arcfox Kaola

• Category: Compact Family-Friendly Electric MPV (EV)

• Manufacturer: Arcfox (BAIC New Energy)

• Launch Date: 2023 (China)

---

Powertrain & Performance

1. Power System:

   • Single-Motor FWD: Permanent Magnet Synchronous Motor

2. Power Output:

   • Max Power: 120 kW (161 hp)

   • Peak Torque: 240 Nm

3. 0-100 km/h Acceleration: 8.5 seconds

4. Max Speed: 160 km/h (99 mph)

---

Battery & Range

• Battery Type: Ternary Lithium (NCM)

• Battery Capacity: 58.8 kWh

• Range (CLTC): 500 km (311 miles)

• Charging:

  • DC Fast Charge: 30%-80% in 35 mins

  • V2L (Vehicle-to-Load): Supported

---

Dimensions & Capacity

• Length/Width/Height: 4,500 mm / 1,850 mm / 1,665 mm

• Wheelbase: 2,820 mm

• Curb Weight: 1,680 kg

• Seating: 5-seater

• Cargo Space: 340-1,200 L (Foldable Seats)

---

Smart Features

1. Family-Centric Design:

   • Integrated Child Safety Seat: ISOFIX + Rotatable Base

   • Air Quality System: CN95 Cabin Filter + UV Sterilization

2. Autonomous Driving:

   • L2 Assisted Driving: 5 Cameras + 3 Radars

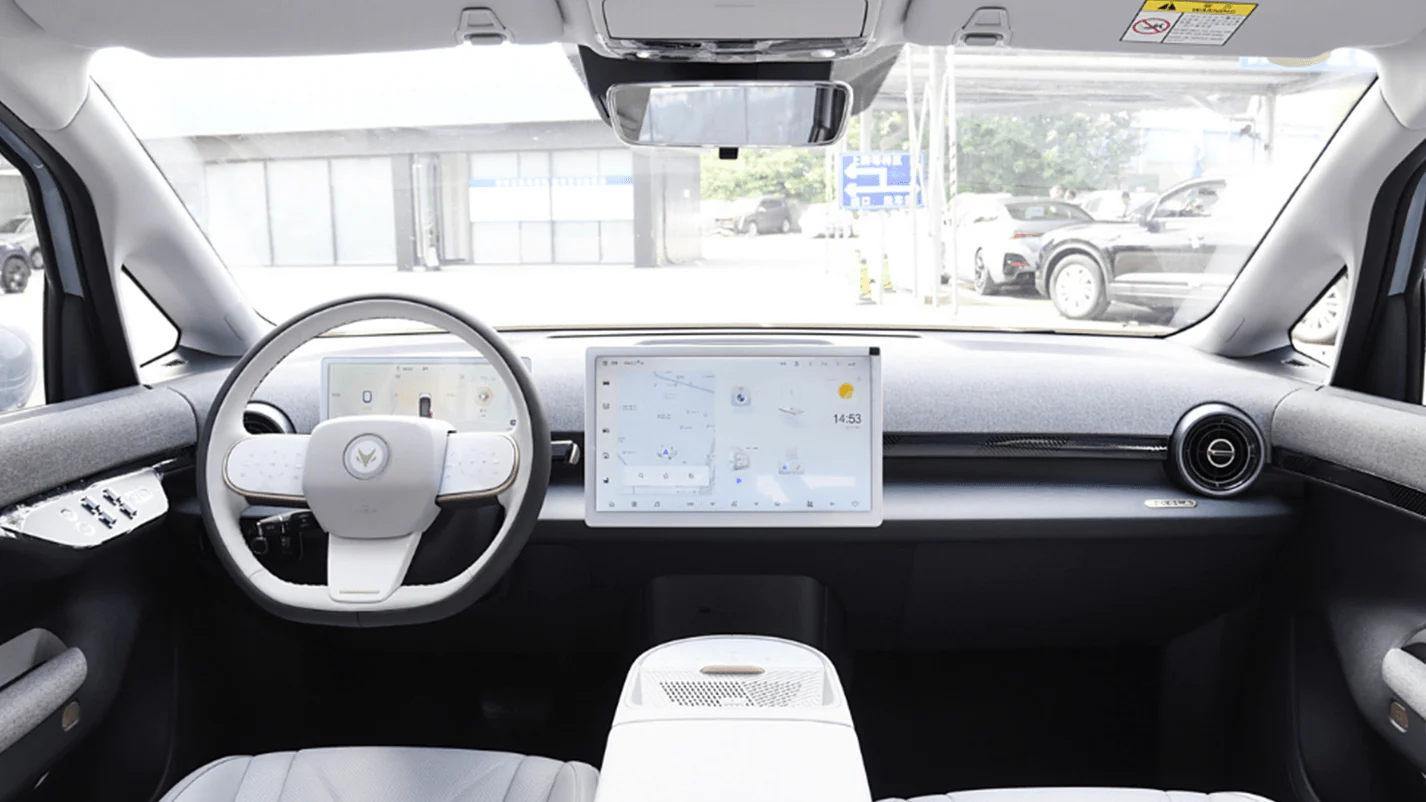

3. Cockpit:

   • 10.25-inch Dual Screens: Driver Display + Central Control

   • Voice Control: Multi-Zone AI Assistant

---

Suspension & Safety

• Suspension: Front MacPherson + Rear Torsion Beam

• Safety:

  • C-NCAP 5-Star Rating (Expected)

  • High-Strength Steel Body
